Technical Sheet

Structure tent - Small Structure

Technical Sheet

Structure tent - Small Serie

  • Canvas sliding system in a round profile rail (Keder)
  • Wind resistance up to 140 km / h
  • Versatile and standard parts
  • Compatible with our other models
  • Interchangeable legs and rafters
  • Square rail allows quick and economical attachment with a standard half-inch bolt
  • Double roof option for better insulation Anticondensation (excellent option for winter tents)
  • Sliding of the walls by small rollers also for rail keder
Read more Close

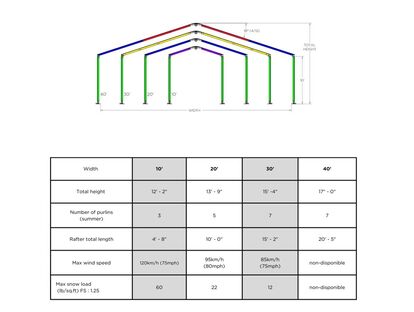

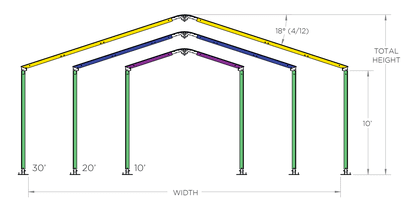

Dimensions

Tableau HTML
Width 10' 20' 30'
Total height12"-2"13'-9'15'-4'
Number of purlins (summer)357
Rafter total length 4’ - 8’’10’ - 0’’ 15’ - 2’’
Wind Resistance120 km/h
(75 mph)
95 km/h
(59 mph)
85 km/h
(52 mph)

Structure et profilé SÉRIE

  • Dimensions: 1,85’’ X 4,38’’
  • Anodized 6005-T5 aluminum extrusion
  • Other parts in ASTM A36 zinc plated steel
  • Steel cables 1/4 ‘’ - 7X19 white vinyl coated
  • Square rail for ‘Bolt-On’ attachment system (pendant lights, decor, etc.)
  • Universal bolt 1/2’’ - 13 Gr. 5

Vinyl

  • Coated vinyl 22oz
  • NFPA 701 and CAN / ULC-S109 fire retardant
  • Opaque to UV rays (Blackout)
  • Anti-mold vinyl
  • All vinyl parts inserted in the Keder rails (13mm)
  • Rollers for wall opening
  • Carrying bags of vinyl parts included

Tinted French windows

Clear French windows

Plain (no window)

Panoramic tinted window

Panoramic clear window

Color, printing and stickers
